Sparse Light Field Refocusing

Arbitrary Volumetric Refocusing of Dense and Sparse Light Fields

📄 Read the paper (arXiv) · PDF

In one line: a pipeline that lets you pick several regions of a photo after it has been captured and choose, for each one, whether it should be sharp or blurred. It works on both dense light fields and sparse light fields that need about 79% less data, and a small neural network cleans up the artifacts that sparse data introduces.

---

At a glance

Topic	Post-capture refocusing of 4-D light fields (computational photography)
Problem	Earlier methods refocus one planar or volumetric region at a time, and cannot keep a region at the same depth range blurred while another is sharp. They are also built for dense light fields
Contribution	An end-to-end pipeline that refocuses multiple arbitrary planar or volumetric regions at once, for dense and sparse light fields
Key ideas	Pixel-dependent shifts in shift-and-sum refocusing · interactive region selection · MS-SSIM depth search for sparse data · U-Net to remove ghosting artifacts
Headline results	SSIM > 0.9 (Structural Similarity Index) on 3 of 4 test light fields from sparse views only · up to 79% less data · 0.71 s for a sparse light field vs 3.64 s for its dense version
Tech	PyTorch · U-Net · epipolar image analysis · MS-SSIM · BRISQUE · Google Colab (Tesla T4 GPU)

---

Background: what is a light field?

A normal photo records only how bright each pixel is. A 4-D light field (LF) also records where the light came from, using many slightly shifted views of the same scene (called sub-aperture images, or SAIs). That extra information makes it possible to estimate depth, suppress occluding objects, and refocus after capture.

The classic refocusing method, shift-and-sum, shifts every view by an amount that depends on depth and then adds them up. Objects at that depth come out sharp, and everything else blurs.

The gap this work fills

	Earlier methods	This work
Regions refocused at once	One planar region, one volumetric (wide-depth) region, or several wide-depth regions	Any number of arbitrary planar or volumetric regions
Same depth range, different focus	Not possible: everything in the chosen depth range is in focus	Possible: one region sharp, another at the same depth range blurred
Light field type	Mostly dense (camera arrays or lenslet cameras)	Dense and sparse
Sparse light fields	Planar refocusing of one narrow depth range	Multiple regions, without building a dense light field first

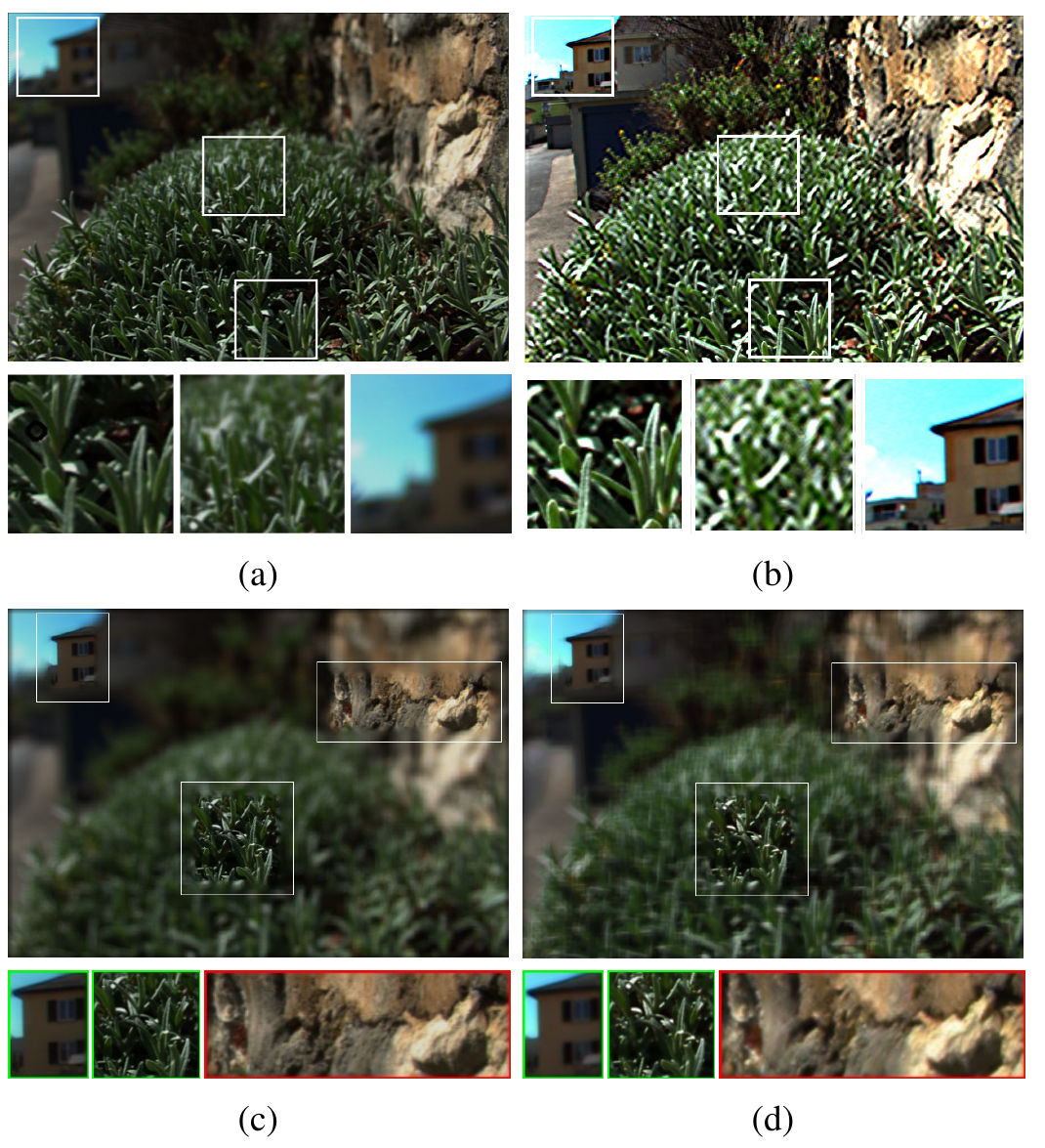

Figure 1 of the paper, “Bush” light field: (a) single planar refocus, (b) two volumetric regions, (c) proposed arbitrary volumetric refocusing with a dense light field, (d) the same with a sparse light field. Narrow-depth and wide-depth regions are outlined in green and red.

Light fields come from different cameras. Camera arrays and lenslet cameras give dense light fields, while compact cameras such as the EPIModule give sparse ones.

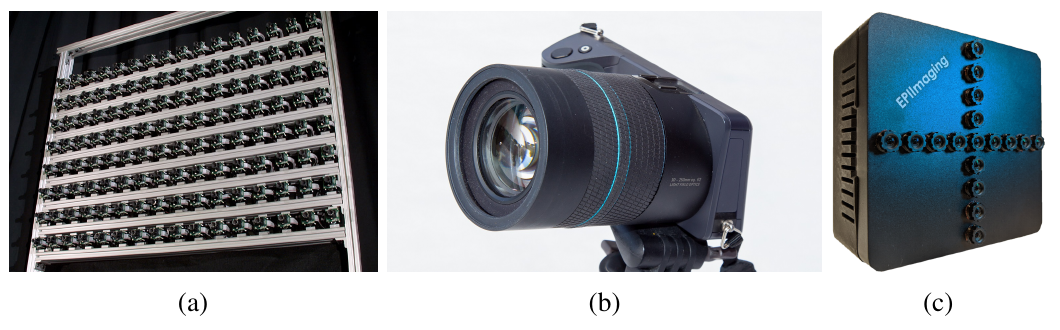

Figure 2 of the paper: (a) light field video camera array, (b) Lytro Illum dense light field camera, (c) EPIModule sparse light field camera.

---

Our approach

Pixel-dependent refocusing

Standard shift-and-sum uses one depth value for the whole image. We use a different depth value for every pixel, stored in an “α mask”. This is what lets each region have its own focus. The user picks regions of interest (ROIs) on the middle view and says whether each has a narrow or wide depth range. Wide regions are split into small patches (20 × 20 pixels) so the focus can change smoothly across them. A Gaussian filter (15 × 15, σ = 5) smooths the α mask so that transitions between sharp and blurred regions look natural.

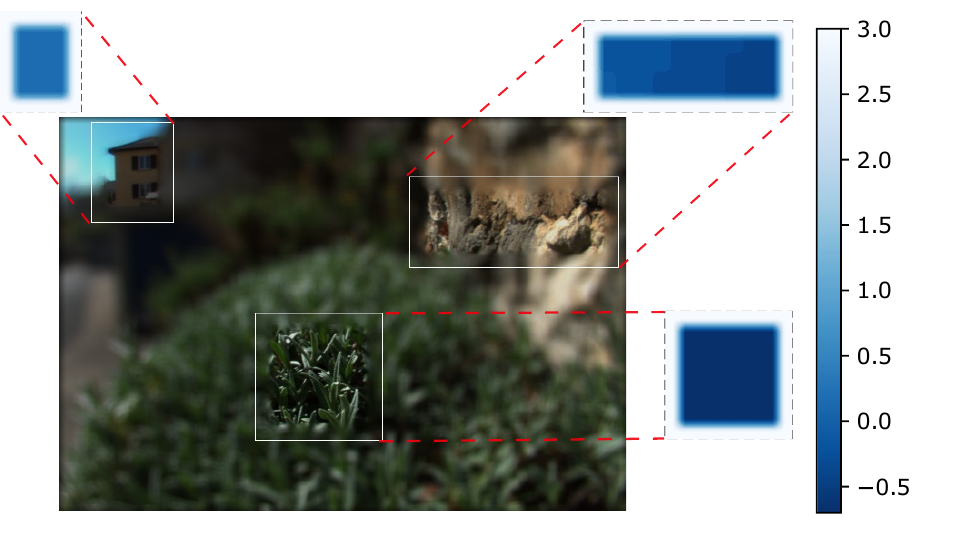

The heat map below shows part of the α mask for the “Bush” example. Notice the smooth transitions between focused and blurred regions, and the α value changing continuously inside the wide-depth region (upper right).

Figure 5 of the paper.

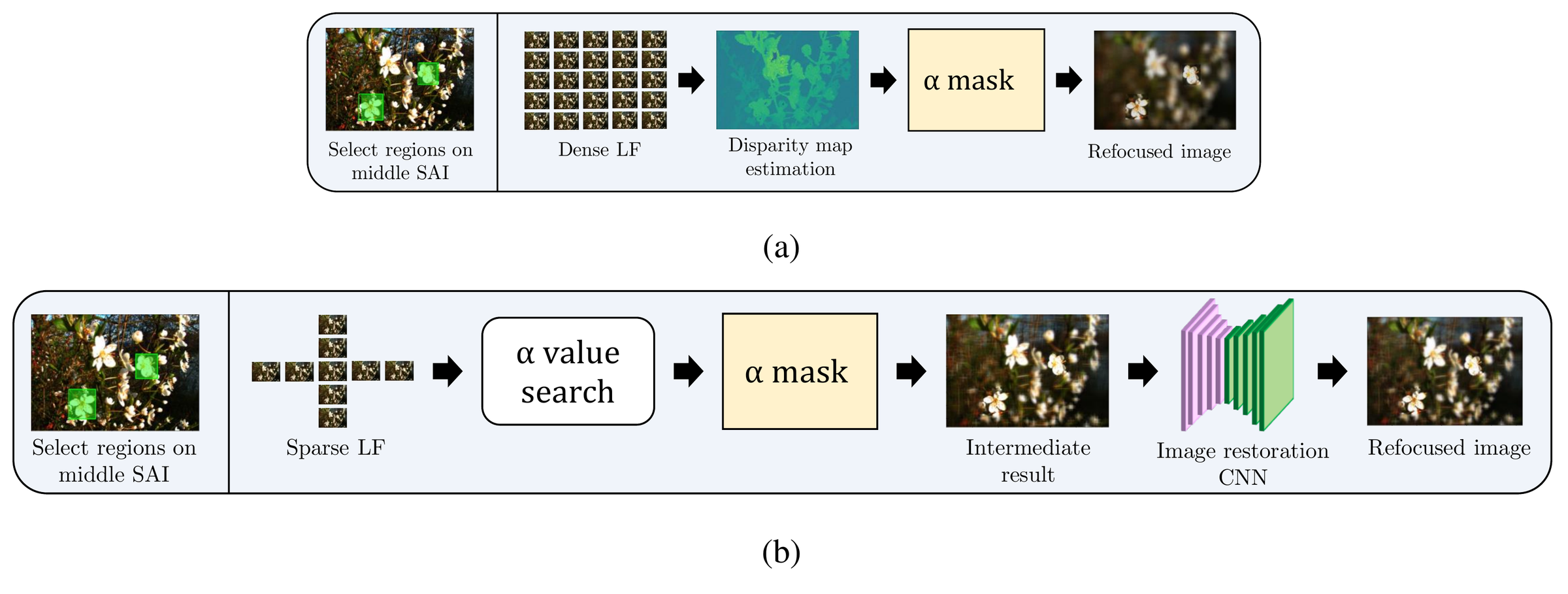

Dense light fields

1. The user selects the ROIs on the middle view.
2. A depth map is estimated with epipolar image analysis (gradients of epipolar lines plus a confidence measure, then smoothing).
3. The α value for each ROI (or patch) is taken as the most common value inside it, and unselected areas get a smaller α so they stay out of focus.
4. Each region with a unique α is refocused with shift-and-sum, and the results are joined into one image.

Sparse light fields

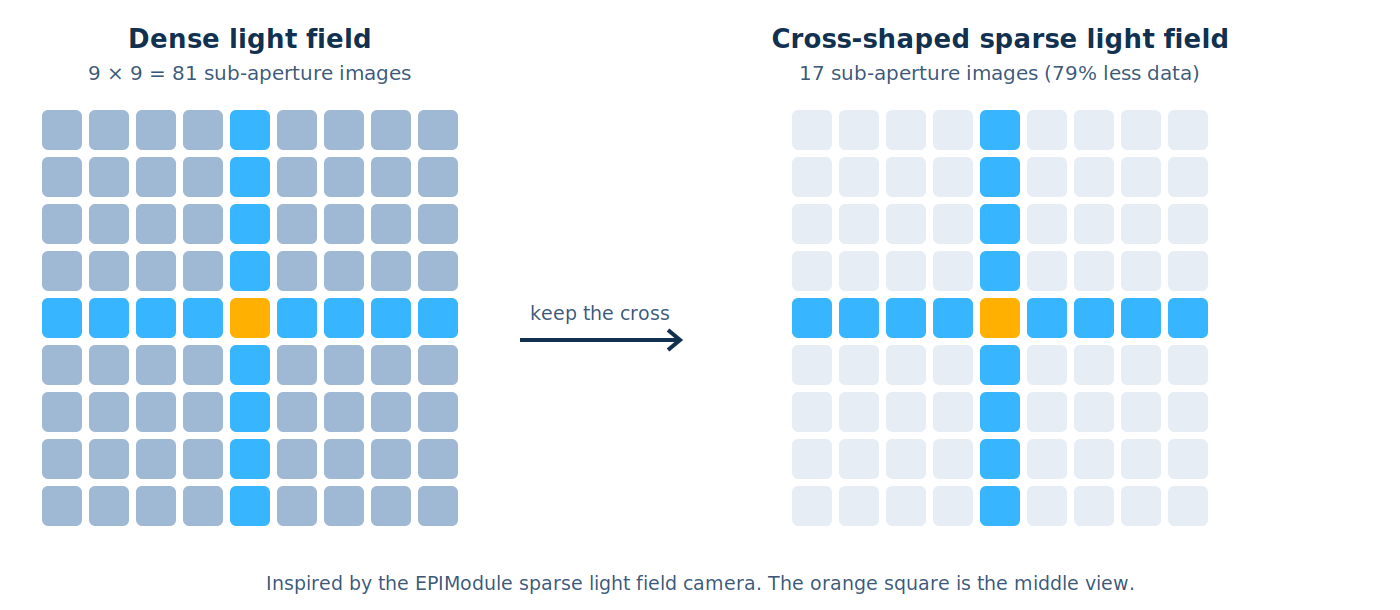

A sparse LF keeps only some of the views. We use a cross-shaped layout, similar to the EPIModule sparse light field camera: 17 views instead of 81 for a 9 × 9 dense light field.

1. No depth map. For each ROI we try different α values, refocus it, and compare it with the same area of the middle view using MS-SSIM. The similarity curve has a single peak, so we first find the range that contains the best α and then search that range in steps of 0.1.
2. Build the α mask and refocus each region, as for dense light fields.
3. With so few views, the out-of-focus areas show ghosting artifacts. A U-Net image restoration network removes them.

Training the ghosting-removal network

Input	Sparse refocused images from our sparse pipeline
Ground truth	Matching images from our dense pipeline
Data handling	Patch-wise training on non-overlapping 100 × 100 patches (few light fields are available)
Loss	MSE + β·(1 − MS-SSIM) + (1 − β)·L1 + γ / PSNR, with β = 0.65 and γ = 500
Training	30 epochs, batch size 256, Xavier initialisation, RMSProp, learning rate 0.001
Why a U-Net	A vision transformer would need far more data than the few available light fields

---

Results

We tested on light fields from three public datasets.

Dataset	Views	Resolution
EPFL	15 × 15	434 × 625
HCI	9 × 9	512 × 512
Stanford	17 × 17	1024 × 1024

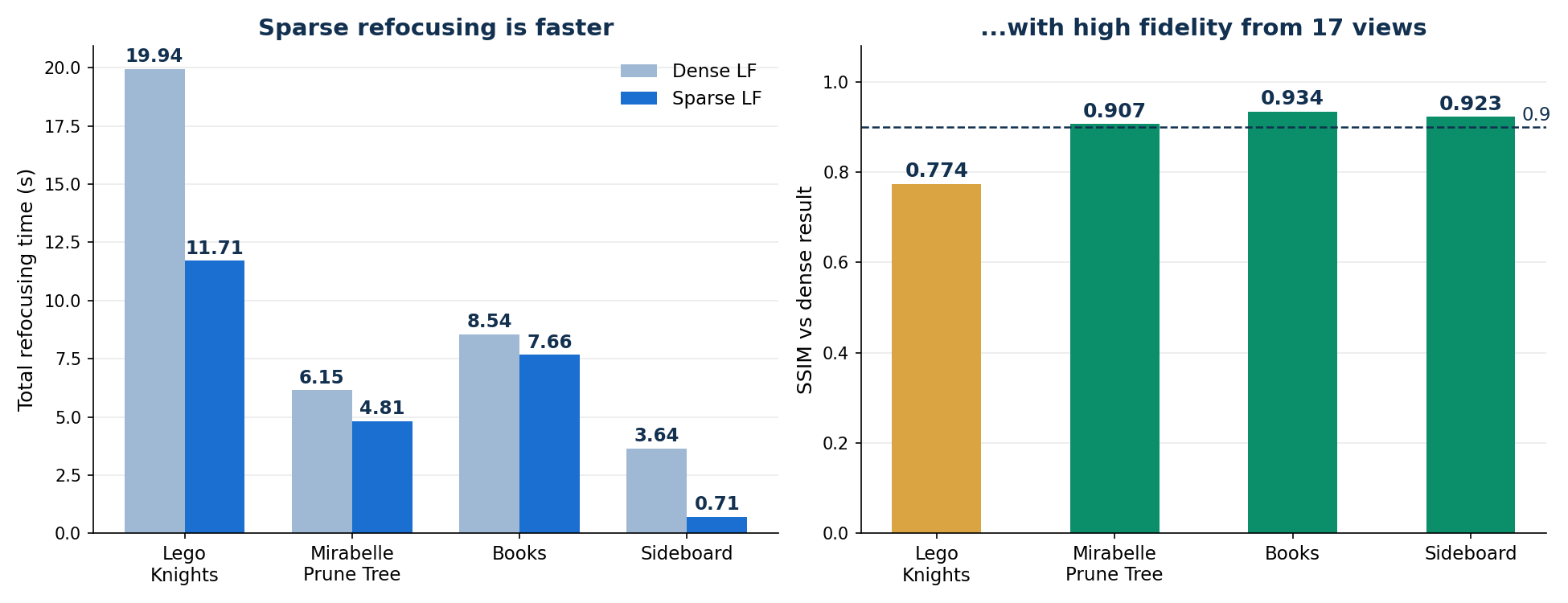

Quality and speed of sparse refocusing, compared with dense

Light field	SSIM	PSNR (dB)	Sparse time as % of dense time
Lego Knights	0.774	24.44	58.7 %
Mirabelle Prune Tree	0.907	24.54	78.2 %
Books	0.934	27.93	89.7 %
Sideboard	0.923	27.81	19.5 %

Three of the four light fields reach an SSIM above 0.9 with only the cross-shaped views. Lego Knights scores lower because it comes from a camera array, whose views are further apart than those of a lenslet camera.

Total processing time

Light field	ROIs	Dense (s)	Sparse (s)	BRISQUE, dense	BRISQUE, sparse
Lego Knights	4	19.94	11.71	44.63	69.11
Mirabelle Prune Tree	4	6.15	4.81	47.58	46.59
Books	3	8.54	7.66	60.30	47.31
Sideboard	3	3.64	0.71	14.96	42.83

BRISQUE is a no-reference image quality score, where lower is better. Times are on a Google Colab Tesla T4 GPU.

• Removing the ghosting artifacts takes only 0.08 to 0.35 s of the total.
• A single refocus takes under 0.2 s on the GPU. For example, 81 refocuses on Lego Knights take about 11 s in total.
• For dense light fields, the depth map is a one-time cost that can be computed at setup time, which cuts the per-use time further.

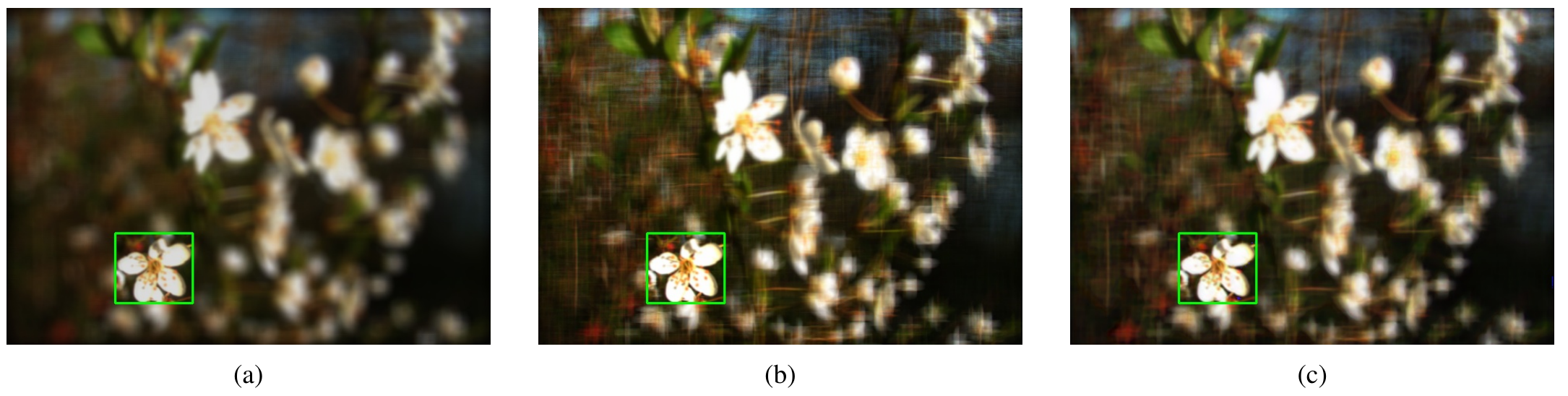

Figure 6 of the paper: the U-Net removes most of the ghosting seen in the plain sparse result.

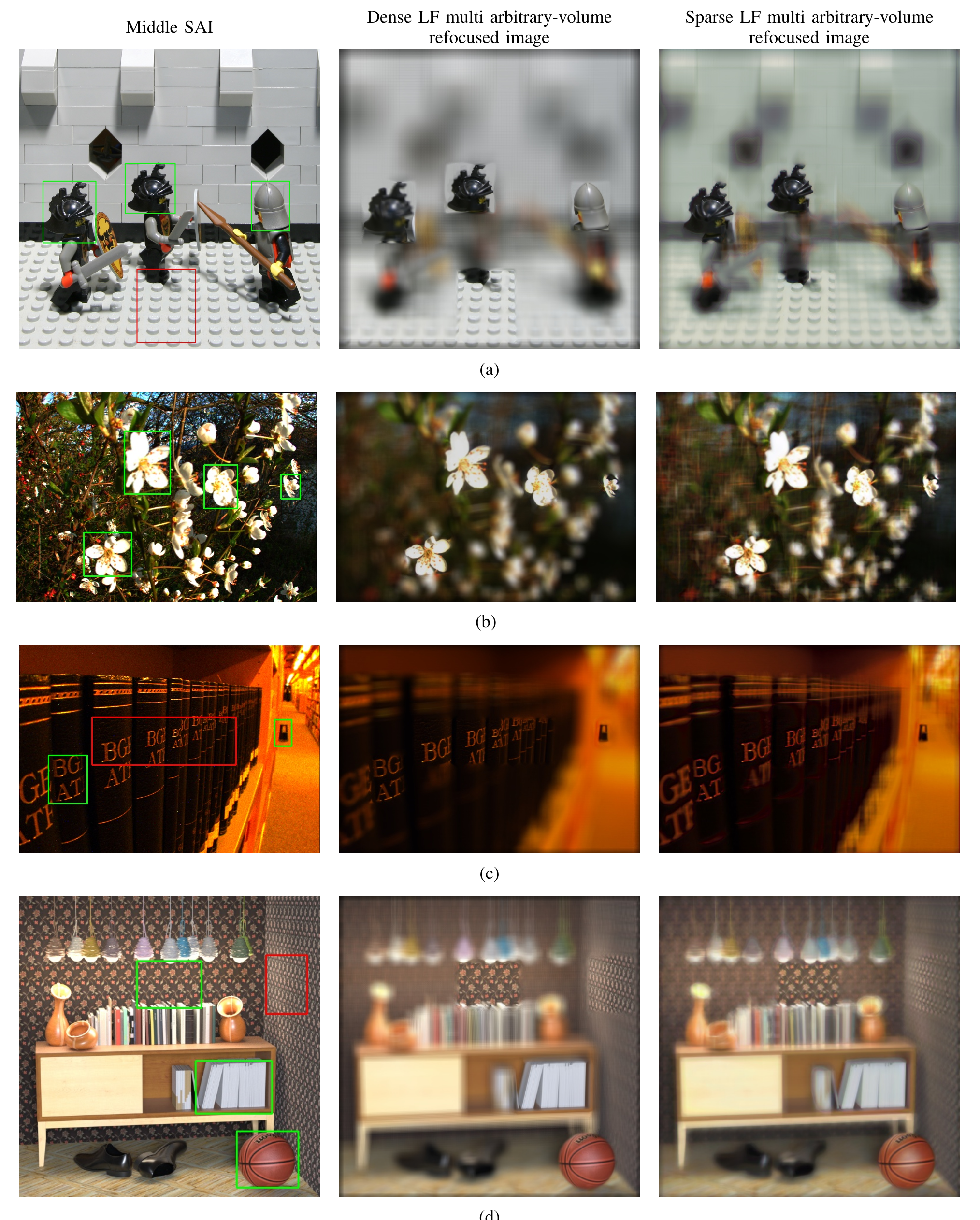

Figure 7 of the paper: multi arbitrary-volume refocusing on Lego Knights, Mirabelle Prune Tree, Books and Sideboard.

---

Limitations and future work

• The sparse result still shows slight aliasing artifacts on some scenes (for example Mirabelle Prune Tree) and a small colour and brightness shift. More training data and better augmentation should reduce both.
• Lego Knights (wide-baseline camera array) gets a lower SSIM than the lenslet-camera light fields.
• Future work: hardware architectures for real-time interactive light field refocusing.

---

Authors

• Tharindu Samarakoon, Kalana Abeywardena, Chamira U. S. Edussooriya
• Paper: Arbitrary Volumetric Refocusing of Dense and Sparse Light Fields, arXiv:2502.19238
